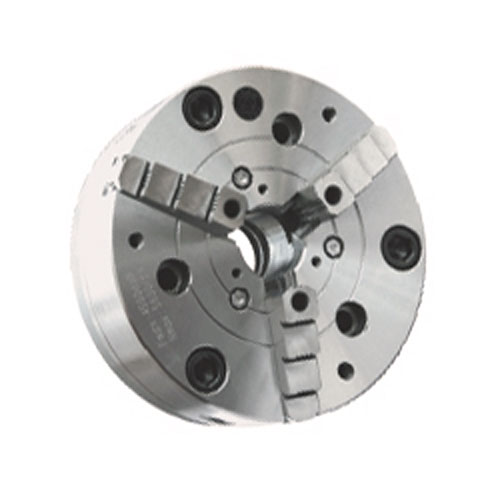

產品：K93
產品特性:
■特點：
☆與機床主軸直接連接，剛性好，精度高。
☆高轉速、高夾緊力、快換爪。
☆具有夾緊力補償性能。
☆可配帶整體爪或分離爪（包括基爪、硬頂爪、軟頂爪）。
■Specificity:
☆Connected directly to the spindle noses of the machining tools, with nice rigidity and high accuracy.
☆High rotation speed, high clamping force and quick jaw-change.
☆The chucks possess the compensation for gripping force.
☆the chucks can be supplied with one-piece jaws or two-piece jaws (including base jaws, hard and soft jaws).
產品詳情

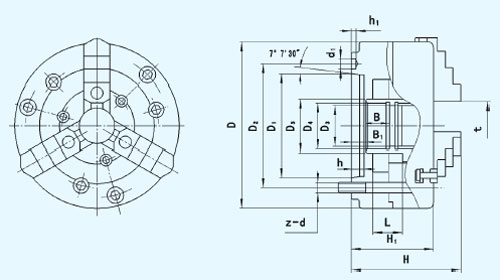

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
h1
|
B
|
B1
|
d1
|
z-d
|
|
160
|
160
|
82.563
|
104.8
|
32
|
M40×1.5
|
48
|
98
|
121
|
15
|
6.5
|
18
|
33
|
16.3
|
3-M10
|
|
200
|
204
|
106.375
|
133.4
|
41
|
M48×1.5
|
56
|
110
|
136.5(153)
|
17.5
|
6.5
|
20
|
21
|
19.5
|
3-M12
|
|
250
|
250
|
139.719
|
171.4
|
52
|
M62×2.0
|
70
|
122
|
180
|
19
|
8
|
20
|
24.5
|
24.2
|
3-M16
|
|
315
|
315
|
196.869
|
235
|
77
|
M85×2.0
|
98
|
135
|
193
|
20
|
10
|
22
|
26
|
29.4
|
3-M20
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
凈重Kg
Net WT
|
|
160
|
18.5
|
6
|
20
|
40
|
6000
|
5-128
|
39-130
|
10
|
|
200
|
30
|
11
|
45
|
90
|
5800
|
15-168
|
58-190
|
25
|
|
250
|
34.5
|
13
|
60
|
120
|
4500
|
20-220
|
90-235
|
41
|
|
315
|
37
|
14
|
80
|
160
|
4000
|
25-278
|
100-262
|
66
|
產品備注
※上表中（）內的H值系配帶分離爪尺寸。
※The H in () on the above table is for reversible top jaws.
|
