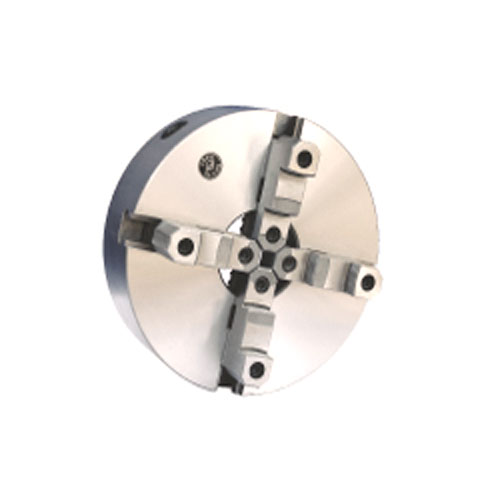

產品：K12
產品特性:
■特點：
☆短圓柱連接形式。
☆卡爪結構參數與K11系列基本一致。
☆適用于正方形、八棱形等零件的加工。
■Specificity:
☆Short cylindrical center mounting.
☆The structure parameters of these chucks are the same as those of the K11 series.
☆Suitable for processing square components and eight-edged components.
產品詳情
■尺寸、性能參數 Dimension Characteristic Parameters
|
規格D
Size
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
凈重kg
Net WT.
|
|
80
|
55
|
66
|
16
|
66
|
50
|
3.5
|
4-M6
|
2
|
|
100
|
72
|
84
|
22
|
73
|
53.5
|
3.5
|
3-M8
|
3
|
|
125
|
95
|
108
|
30
|
84
|
58
|
4
|
3-M8
|
5
|
|
130
|
100
|
115
|
30
|
86
|
60
|
3.5
|
3-M8
|
5.6
|
|
160
|
130
|
142
|
40
|
95
|
65
|
5
|
3-M8
|
8.8
|
|
160A
|
130
|
142
|
40
|
109
|
65
|
5
|
3-M8
|
8.3
|
|
165
|
130
|
145
|
40
|
96.5
|
66.5
|
4.5
|
3-M8
|
9.8
|
|
190
|
155
|
172
|
55
|
105
|
75
|
5
|
3-M10
|
13.8
|
|
200
|
165
|
180
|
65
|
109
|
75
|
5
|
3-M10
|
15.5
|
|
200C
|
165
|
180
|
65
|
122
|
75
|
5
|
3-M10
|
14.1
|
|
200A
|
165
|
180
|
65
|
122
|
75
|
5
|
3-M10
|
14.1
|
|
240
|
195
|
215
|
70
|
120
|
80
|
8
|
3-M12
|
25
|
|
250
|
206
|
226
|
80
|
120
|
80
|
5
|
3-M12
|
26
|
|
250C
|
206
|
226
|
80
|
130
|
80
|
5
|
3-M12
|
23
|
|
250A
|
206
|
226
|
80
|
136
|
80
|
5
|
3-M12
|
23
|
|
325(325C)
|
272
|
296
|
100
|
153.5
(154.5)
|
96
|
12
|
3-M16
|
50(45)
|
|
325A
|
272
|
296
|
100
|
169.5
|
96
|
12
|
3-M16
|
47
|
|
380(380C)
|
325
|
350
|
135
|
155.5
(156.5)
|
98
|
6
|
3-M16
|
66(61)
|
|
380A
|
325
|
350
|
135
|
171.5
|
98
|
6
|
3-M16
|
63
|
|
400(400D)
|
340
|
368
|
138
|
158(172)
|
100
|
6
|
3-M16
|
75(72)
|
|
500(500A)
|
440
|
465
|
210
|
184(202)
|
115
|
6
|
6-M16
|
127(120)
|
|
630(630D)
|
560
|
595
|
270
|
214(218)
|
133.5
|
7
|
6-M16
|
219(210)
|
|
800D
|
710
|
760
|
385
|
250
|
161
|
8.5
|
6-M20
|
-
|
|
800E
|
710
|
760
|
385
|
250
|
161
|
8.5
|
6-M20
|
-
|
|
1000E
|
905
|
950
|
460
|
310
|
198
|
9
|
6-M24
|
-
|
|
1250E
|
1060
|
1150
|
550
|
341
|
228
|
11
|
6-M30
|
-
|
產品備注
※K12口/口短錐系列其連接尺寸同K11口/口三爪短錐系列。
※K12口/口short taper series have the same mounting dimensions as K11口/口three-jaw short taper series.
|
