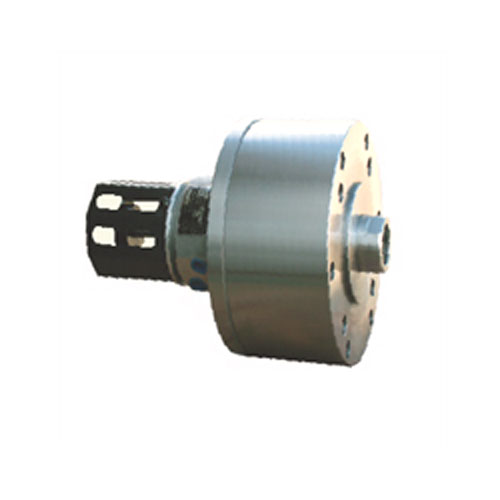

產品：P24（DB）
產品特性:
■特點：
☆不通孔高速回轉油缸。油缸采用優質鋁合金材料，體積小，重量輕，轉速高，密封性好。
☆配有行程控制裝置。
☆安裝形式：既可以從后面安裝，也可以從前面安裝。
☆是數控車床理想動力源。
■Specificity:
☆The cylinders are no through-hole high-speed rotating hydraulic cylinders ,which made of high quality aluminium alloy,small volume, light weitht,high speed and good sealing reliability etc.
☆Equipped with stroke control device.
☆Mounting type:mounting from back as well as the front.
☆I(lǐng)t is the ideal power source for the CNC lathes.
產品詳情

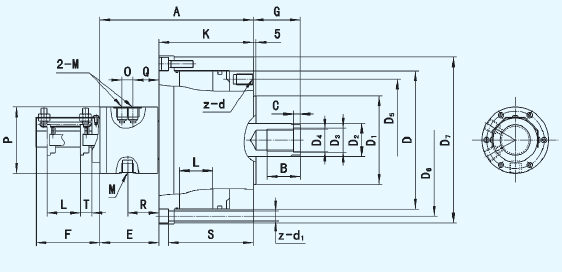

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
D6
|
D7
|
A
|
B
|
C
|
E
|
F
|
G
|
K
|
M
|
O
|
P
|
Q
|
R
|
S
|
T
|
z-d
|
z-d1
|
|
max
|
max
|
|
P24150(DB)
|
150
|
95
|
45
|
31
|
M30
|
145
|
170
|
192
|
214
|
55
|
10
|
87
|
86
|
70
|
30
|
127
|
G3/8″
|
11
|
80
|
37
|
42
|
114
|
21
|
4-M16
|
6-Φ
13.5
|
|
P24175(DB)
|
175
|
125
|
50
|
37
|
M36
|
170
|
195
|
217
|
219
|
55
|
10
|
87
|
86
|
70
|
25
|
132
|
G3/8″
|
11
|
80
|
37
|
42
|
119
|
21
|
6-M16
|
6-Φ
13.5
|
|
P24200(DB)
|
200
|
125
|
60
|
44
|
M42×3
|
170
|
225
|
250
|
259
|
60
|
12
|
107
|
115
|
80
|
30
|
152
|
G1/2″
|
20
|
120
|
47
|
57
|
135
|
21
|
6-M16
|
6-Φ
17.5
|
|
P24250(DB)
|
250
|
160
|
60
|
44
|
M42×3
|
220
|
275
|
300
|
277
|
60
|
12
|
107
|
115
|
85
|
25
|
170
|
G1/2″
|
20
|
120
|
47
|
57
|
153
|
21
|
6-M20
|
6-Φ
17.5
|
■性能參數 Characteristic Parameters
|
規格
Size
|
活塞有效面積㎝2
Piston effective area
|
活塞行程Lmax
Piston stroke
|
最大使用壓力Mpa
Max. acting pressure
|
極限轉速r/min
Max. speed
|
最大推拉力kN
(使用壓力4.0MPa)
Max. draw pull
|
凈重Kg
Net WT
|
|
P24150(DB)
|
157
|
40
|
7.0
|
6000
|
62
|
20
|
|
P24175(DB)
|
212
|
45
|
7.0
|
5000
|
84
|
24
|
|
P24200(DB)
|
280
|
50
|
7.0
|
4000
|
112
|
45
|
|
P24250(DB)
|
457
|
60
|
5.0
|
2000
|
180
|
88
|
|
